• YF3200D DX5 piezo head printer
  • YF3200D DX5 piezo head printer

YF3200D DX5 piezo head printer

Model No.︰

3200D

Brand Name︰

Yifang

Country of Origin︰

China

Unit Price︰

US $ 9950 / pc

Minimum Order︰

1 pc

Share on:

Product Description

Product description

Support double Epson DX5 print head



 Equipped with automatic print head maintenance station



 Positive ink supply system with 1500ml/color capacity ink tank



Industrial vacuum table keep high resolution printing quality



Perfect Color Presentation



Perfect brushless Servo Motor with DSP digital controlling technology



Original Industrial HIWIN non-noise linear rail



High resolution media feeding system, more accurate



LED lighting system, better operation in dark environment



High-tech on printing control, less ink consumption



Specification:

Item model

YF3200D

Print head

Piezo Technology Epson DX5

Resolution

Up to 1440dpi Visual Resolution

Print head number

2pcs

Maximum Print Width

3200mm



Print Resolution/ Speed (sqm/h)

Production (4pass): 48

Standard (6pass): 40

High resolution (8pass):  33

Ink type

Eco-Solvent Ink/Sublimation Ink/Dye Ink/Reactive Ink

Ink supply system

Positive ink supply system with cleaning function , 1500ml/c ink tank

Color

Double CMYK

Media width

3200mm

Media thickness

1.5mm (1.5mm-5mm adjustable)

Media Roll Diameter(I/D)

55mm or 76mm/ <200mm

Max media weight

150kg

Media type

Vinyl, Flex Banner, Mesh, One Way Vision, Paper, Textile, Wall Paper, Coated Banner, Canvas, Film, Lint-free Cloth, Photo Paper etc.

Data Communication

High speed USB2.0(480m/s)

Image data format

BMP, TIFF, EPS,PDF, AI, JPEG

Rip

Ultra Print V4.4 YIFANG Version



Operation environment

Power supply: 220v(±10%), >10Asingle phase

(Temperature): 18℃-35℃

(Humidity): 40%-70%

Power Consumption

1200W

Machine Size (L x W x H)

4.36 x 0.86 x 1.28 m

Package type/size

Wooden box/ 4500*950*1460 (mm)

Gross Weight / Net Weight

750KG/680KG

※ The exact configurations of equipment are subject to real machine

Motor

Perfect Brushless Servo Motor

Linear Rail

Original Industrial HIWIN non-noise linear rail

Heating System

Digital Control Pre & Back Heater

Drying System

Yes

IR Drying System

Optional

Media Handling

Roll to roll handling

Take-up System

Optional: single/double driven automatic take-up






Payment Terms︰ TT, western union, paypal
Packing︰ wooden

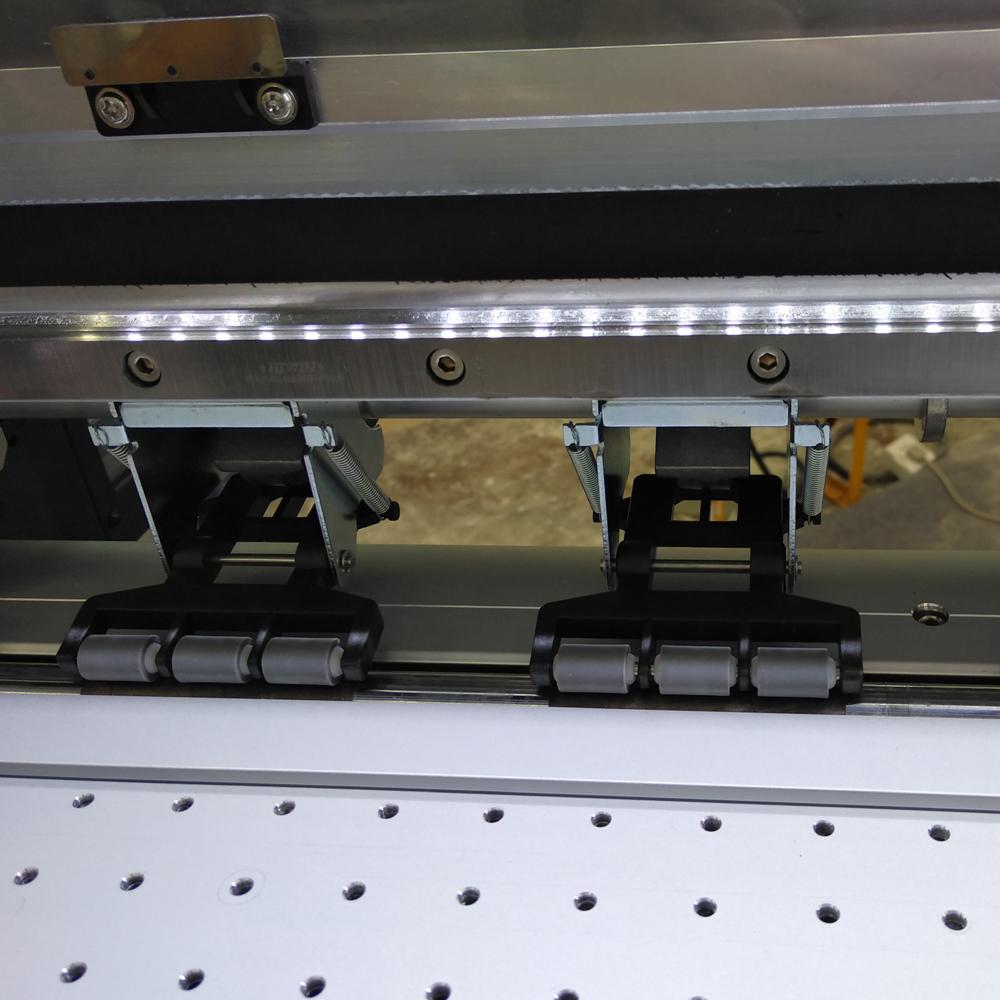

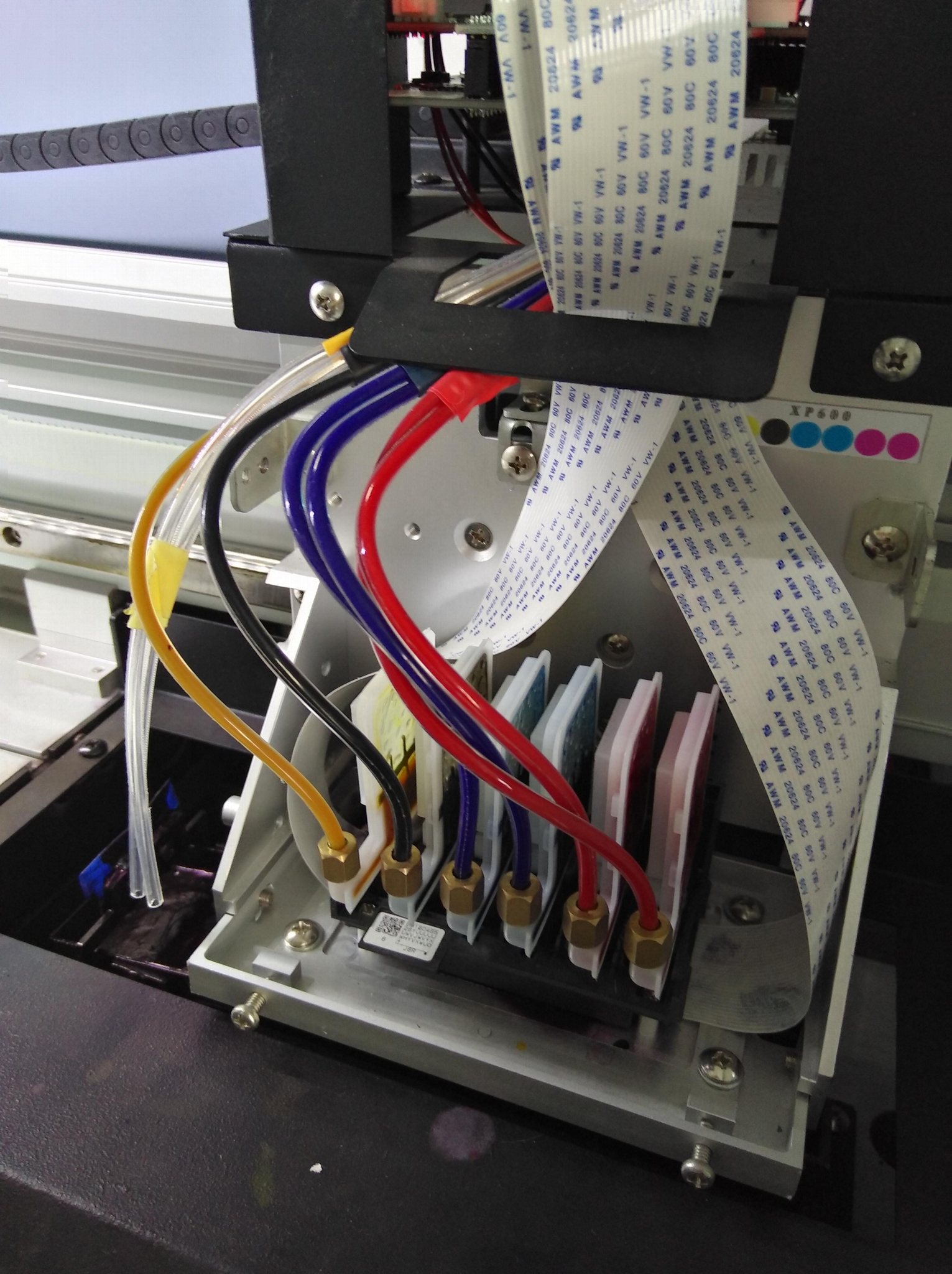

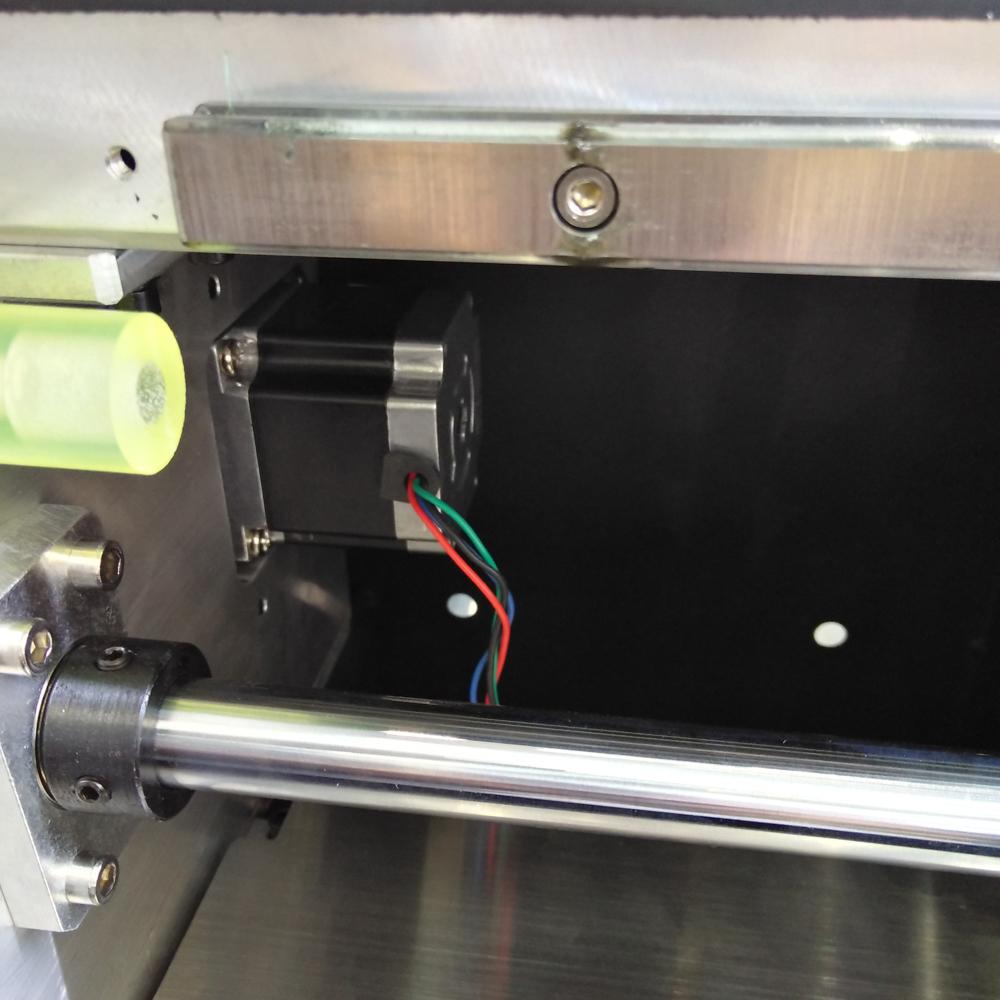

Product Image
